Stainless Steel Panels

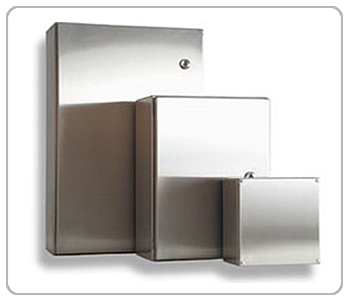

SS PANEL
MATERIAL : STAINLESS STEEL 304 & 316L GRADE
FINISH : MATT
DEGREE OF PROTECTION IP 42, 55, 56 & 65

Stainless Steel with Powder Coating

Customised Solutions . . .

Ability to meet the special requirements like nonstandard Sizes, Finish, Door configuration, Locking arrangement, Wall mounting, Floor mounting stand, Canopy.

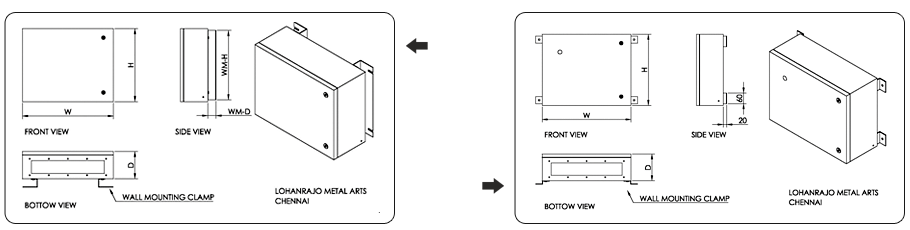

PANEL WALL MOUNTING CLAMP "C" TYPE
MATERIAL : MILD STEEL              FINISH : POWDER-COATED
PANEL WALL MOUNTING CLAMP "Z" TYPE
MATERIAL : MILD STEEL              FINISH : POWDER-COATED

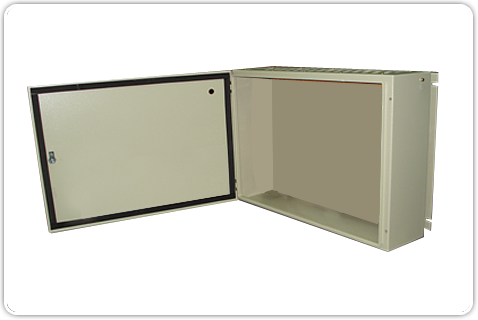

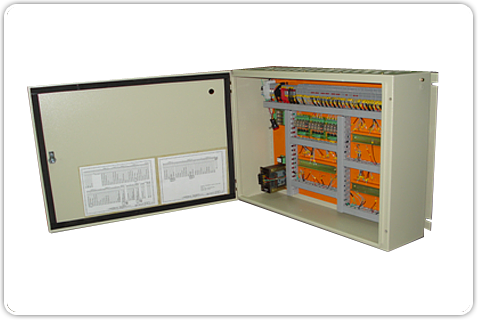

Product - Panel With Wiring

Customised Solutions . . .

Ability to meet the special requirements like nonstandard Sizes, Colours, Door configuration, Locking arrangement, Wall mounting, Floor mounting stand, Canopy, Double enclosure type.

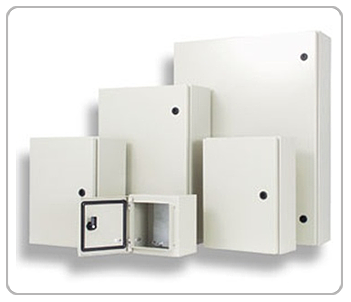

Product - Panel Without Wiring
S.NO
PANEL SIZE mm

    PANEL CODE WxHxD
       W x H x D
25.

LRE 806025 C/Z

800 x 600 x 250
26.

LRE 807025 C/Z

800 x 700 x 250
27.

LRE 808025 C/Z

800 x 800 x 250
28.

LRE 8010025 C/Z

800 x 1000 x 250
29.

LRE 8011025 C/Z

800 x 1100 x 250
30.

LRE 8012025 C/Z

800 x 1200 x 250
31.

LRE 10010025C/Z

1000 x 1000 x 250
32.

LRE 10011025C/Z

1000 x 1100 x 250
33.

LRE 10012025C/Z

1000 x 1200 x 250
34.

LRE 10013025 C/Z

1000 x 1300 x 250
35.

LRE 10014025 C/Z

1000 x 1400 x 250
36.

LRE 806030 C/Z

800 x 600 x 300
37.

LRE 807030 C/Z

800 x 700 x 300
38.

LRE 808030 C/Z

800 x 800 x 300
39.

LRE 8010030 C/Z

800 x 1000 x 300
40.

LRE 8011030 C/Z

800 x 1100 x 300
41.

LRE 8012030C/Z

800 x 1200 x 300
42.

LRE 10010030 C/Z

1000 x 1000 x 300
43.

LRE 10011030 C/Z

1000 x 1100 x 300
44.

LRE 10012030 C/Z

1000 x 1200 x 300
45.

LRE 10013030 C/Z

1000 x 1300 x 300
46.

LRE 10014030 C/Z

1000 x 1400 x 300
47.

LRE 12012030 C/Z

1200 x 1200 x 300
S. NO
PANEL SIZE mm

    PANEL CODE WxHxD
       W x H x D
1.
LRE 353515 C/Z
350 x 350 x 150
2.

LRE 504015 C/Z

500 x 400 x 150
3.

LRE 505015 C/Z

500 x 500 x 150
4.

LRE 606015 C/Z

600 x 600 x 150
5.

LRE 707015 C/Z

700 x 700 x 150
6.

LRE 909015 C/Z

900 x 900 x 150
7.

LRE 505022 C/Z

500 x 500 x 220
8.

LRE 606022 C/Z

600 x 600 x 220
9.

LRE 607022 C/Z

600 x 700 x 220
10.

LRE 807022 C/Z

800 x 700 x 220
11.

LRE 808022 C/Z

800 x 800 x 220
12.

LRE 8010022 C/Z

800 x 1000 x 220
13.

LRE 8011022 C/Z

800 x 1100 x 220
14.

LRE 8012022 C/Z

800 x 1200 x 220
15.

LRE 10010022 C/Z

1000 x 1000 x 220
16.

LRE 10011022 C/Z

1000 x 1100 x 220
17.

LRE 10012022 C/Z

1000 x 1200 x 220
18.

LRE 10013022 C/Z

1000 x 1300 x 220
19.

LRE 10014022 C/Z

1000 x 1400 x 220
20.

LRE 505022 C/Z

500 x 500 x 250
21.

LRE 506022 C/Z

500 x 600 x 250
22.

LRE 606022 C/Z

600 x 600 x 250
23.

LRE 607022 C/Z

600 x 700 x 250
24.

LRE 707022 C/Z

700 x 700 x 250


Salient Features . . .

High grade CRCA sheet steel is used to provide the highest level of durablility in any environment.
Powder coated finish : Body - RAL 7035 (Textured), Mounting Plate - RAL 2000 (Deep Orange) / Zinc Galvanised
Enclosures can be fixed directly or can be fixed from outside with separately available set of mounting brackets.
Enclosures are designed to provide protection from dust & moisture.
Easy installation of Mounting plate.
2 nos M6 studs provided for secured earthing.
Delivered in Corrugated Box.
Note:
    To order, kindly mention the code number of panel enclosure.

Technical Specifications . . .

Fabricated from 1.2mm / 1.6mm / 2mm CRCA sheets (Thickness of material vary depend on the Size of the Enclosures (Panel)).
Gasket : Polyurethane / Polyethylene
Hinged door, interchangeable LHS / RHS
IP - 55 Degree of protection.
Mounting plate made using 2 mm CRCA sheet steel, Deep Orange colour shade (RAL 2000) / Zinc Galvanised
Cable gland plate 1.6 mm / 2mm thick provided at bottom or top.
Cam Locking arrangement.
Powder coated to RAL 7035 textured finish.



S. No PANEL CODE INNER PANEL SIZE (COMPONENTS
MOUNTING) W x H x D - mm
PANEL OUTER SIZE WXHXD - mm CANOPY MOUNTING
1.
LRDSE 505015
500 x 500 x 150
600 x 600 x 200 Required *WMB/FMS
2.

LRDSE 606015

600 x 600 x 150
700 x 700 x 200 Required *WMB/FMS
3.

LRDSE 606021

600 x 600 x 210
700 x 700 x 260 Required *FMS
4.

LRDSE 767621

760 x 760 x 210
860 x 860 x 260 Required *FMS
5.

LRDSE 806021

800 x 600 x 210
900 x 700 x 260 Required *FMS
6.

LRDSE 8010025

800 x 1000 x 250
900 x 1100 x 300 Required *FMS
7.

LRDSE 10010025

1000 x 1000 x 250
1100 x 1100 x 300 Required *FMS
8.

LRDSE 10011025

1000 x 1100 x 250
1100 x 1200 x 300 Required *FMS
9.

LRDSE 11011025

1100 x 1100 x 250
1200 x 1200 x 300 Required *FMS
10.

LRDSE 12012025

1200 x 1200 x 250
1300 x 1300 x 300 Required *FMS















* WMB - WALL MOUNTING BRACKET
* FMS - FLOOR MOUNTING STAND
Technical Specifications:
» Fabricated from 1.6mm/2mm CRCA sheets (Thickness of material vary    depend on the Size of the Enclosures(Panel)
» Gasket : Polyurethane/ Polyethylene
» Hinged door
» IP - 65 Degree of protection
» Mounting plate made using 2 mm CRCA sheet steel - Zinc Galvanised
» Cable gland plate 1.6 mm/2mm thick provided at bottom
» Cam Locking arrangement.
» Powder coated to RAL: 7035 Structured finish

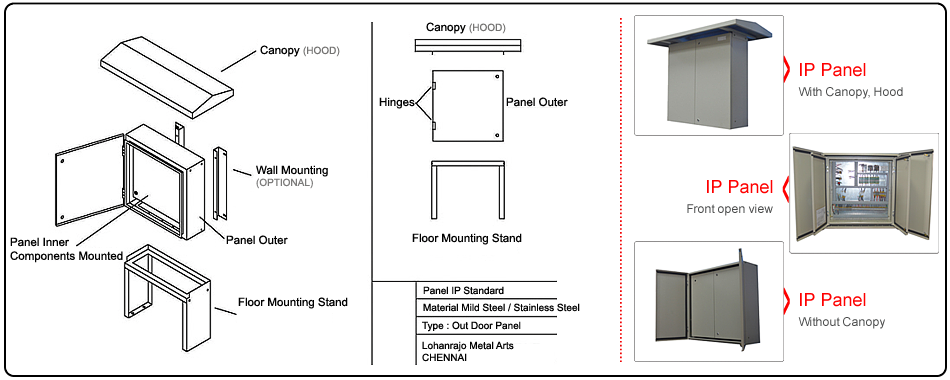

Salient Features :
» High grade CRCA sheet steel is used to provide the highest level of    durablility in any environment.
» Powder coated finish:Body - RAL 7035(Structured),Mounting Plate - /Zinc    Galvanised
» Enclosures are desinged to provide protection from dust & moisture.
» Easy installation of Mounting plate.
» 2 nos M6 studs provided for secured earthing.
» Floor mounting stand (Dismandling type to reduce package space)
» Delivered in Corrugated packing
Customised Solutions . . .
Ability to meet the special requirements like Material (Stainless Steel),Nonstandard Sizes,Colours,Door configuration, Locking arrangement,Wall mounting,Floor mounting stand(Height), & Canopy.

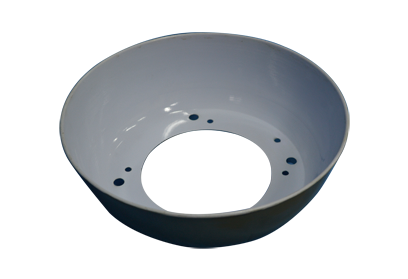

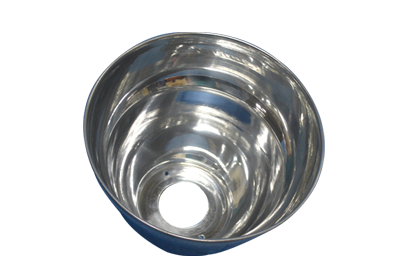

REFLECTOR - ROUND SHAPED POLISHED
MATERIAL : ALUMINIUM              FINISH : POLISHED
REFLECTOR - ROUND SHAPED POWDER COATED
MATERIAL : MILD STEEL              FINISH : POWDER-COATED

Customised Solutions . . .

Round Reflectors are done by spinning process for Aluminium and Mild steel & Deep drawing die method for Stainless Steel.

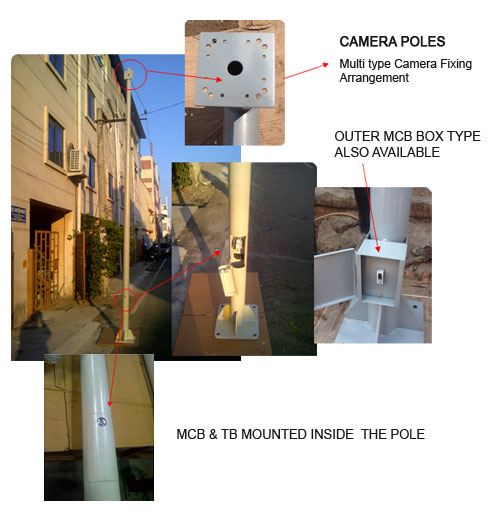

CAMERA AND LIGHTING POLES
MATERIAL : MILD STEEL
FINISH : POWDER-COATED
SIZES   : 1.5 Meter, 3 Meter, 4.5 Meter, 6 Meter
(6 Meter Pole has 2 parts with Joint of Flange & Bolt Nuts)




Customised Solutions . . .

Height and Powder Coating Colour as per customer's requirement.

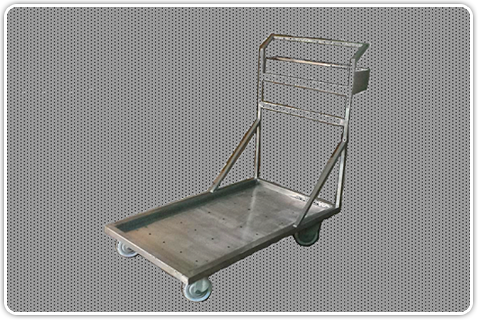

TROLLEYS
MATERIAL : STAINLESS STEEL 304 & 316L GRADE,
& MILD STEEL

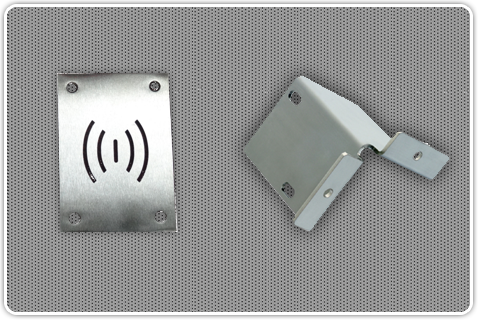

SHEET METAL COMPONENTS
MATERIAL : STAINLESS STEEL 304 & 316L GRADE,
MILD STEEL, ALUMINIUM & OTHER METALS

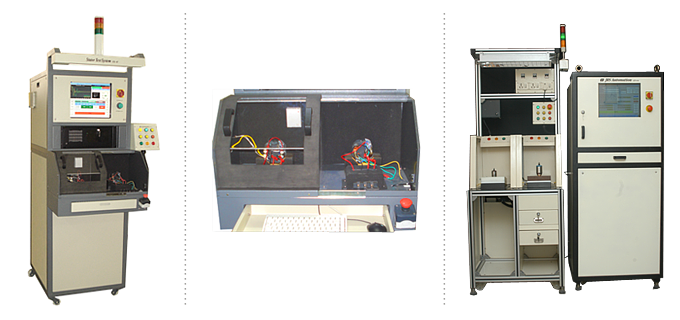

TEST JIG & FIXTURES
SHEET METAL DIES & TOOLS
MACHINED COMPONENTS
PANEL WIRING
SPECIAL COMPONENTS
SPINNING COMPONENTS
CUSTOM BUILT PANELS
